Mini Søund Generatør ()
[hardware]
- Project stage: Beta Edition
- Tools: KiCad, Arduino
- Photos by: Iza Rzechuła
- Links:
PCB for MSG (Mini Søund Generatør) originally designed by Ross Fish Møffenzeef Mødular. The ino file can be found in the repository: MSG
* NOTE: This project was created for personal use only and is not commercial.

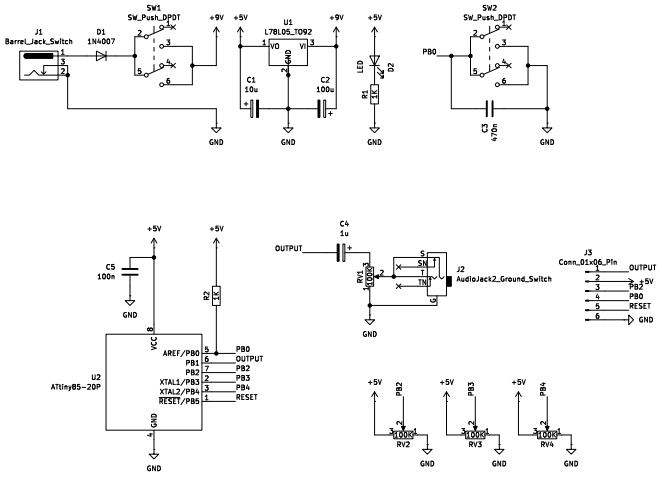

Schematic

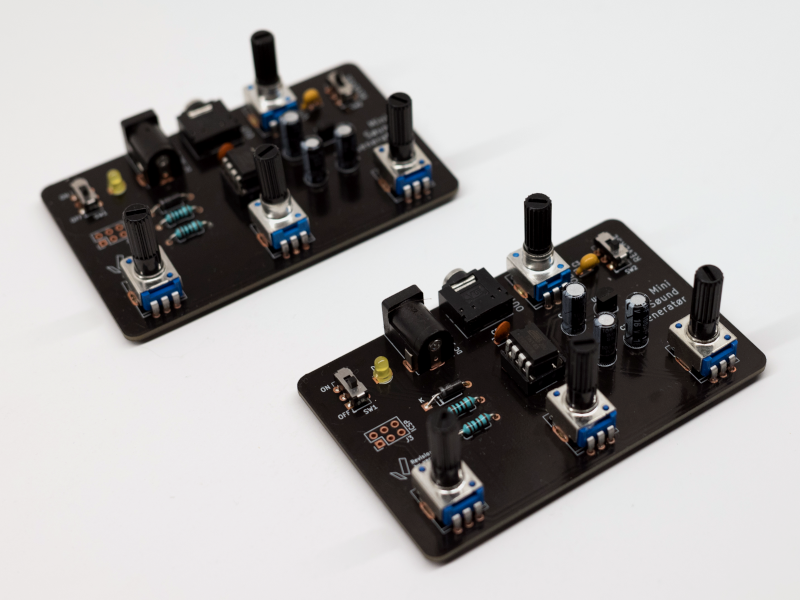

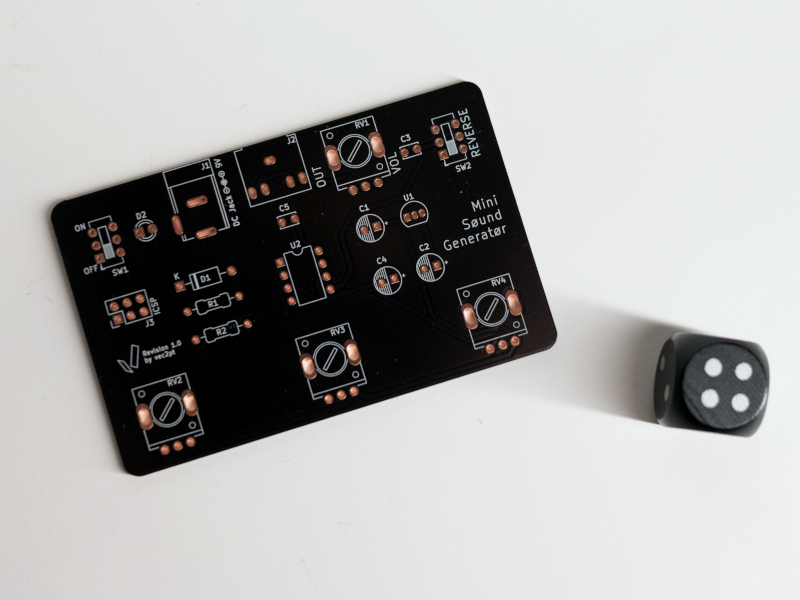

Photos
BoM
| # | Reference | Qty | Value | Footprint |
|---|---|---|---|---|
| 1 | C1 | 1 | 10u | CP_Radial_D5.0mm_P2.50mm |
| 2 | C2 | 1 | 100u | CP_Radial_D5.0mm_P2.50mm |
| 3 | C3 | 1 | 470n | C_Disc_D3.4mm_W2.1mm_P2.50mm |
| 4 | C4 | 1 | 1u | CP_Radial_D5.0mm_P2.50mm |
| 5 | C5 | 1 | 100n | C_Disc_D3.4mm_W2.1mm_P2.50mm |
| 6 | D1 | 1 | 1N4007 | D_A-405_P10.16mm |
| 7 | D2 | 1 | LED | LED_D3.0mm |
| 8 | J1 | 1 | Barrel_Jack_Switch | BarrelJack_54-00166 |
| 9 | J2 | 1 | AudioJack2_Ground_Switch | AudioJack_3.5 |
| 10 | J3 | 1 | Conn_01x06_Pin | PinHeader_2x03_P2.54mm |
| 11 | R1,R2 | 2 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm |
| 12 | RV1,RV2,RV3,RV4 | 4 | 100K | Potentiometer_R9011 |
| 13 | SW1,SW2 | 2 | SW_Push_DPDT | SW_Push_4x9 |
| 14 | U1 | 1 | L78L05_TO92 | TO-92_Inline |
| 15 | U2 | 1 | ATtiny85-20P | DIP-8_W7.62mm |
